What is the calorimetric chamber?
The calorimetric chamber is used to determine the operating parameters of local appliances burning solid fuels (wood stove, storage fireplaces, stoves, individually built stoves, etc.), In particular to determine the course of thermal power equipment in the range of 0–20 kW.

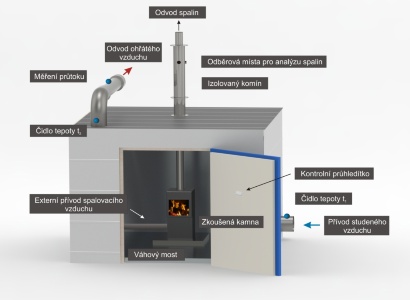

The principle of measurement in the calorimeter chamber
The calorimetric chamber is insulated space, in which the test oven are placed. The measuring principle consists on supply of known quantity of cold air into the chamber, while the chamber is evacuated and the heated air on the basis of the heat. According to heat balance, the instantaneous heat power appliance is calculated. The airflow chamber is maintained constant by means of the PID controller and frequency-controlled fan. The inner surface of the calorimeter chamber is covered with reflective foil, which minimizes the accumulation of thermal energy into the structure of the chamber.

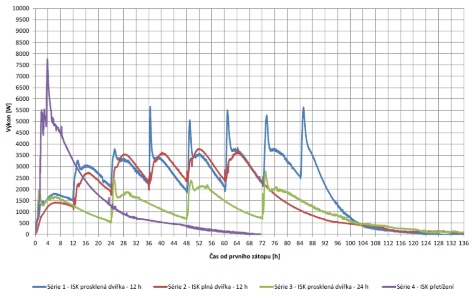

Example of measured thermal performance for heavy-built stove individually
Articles related issues
- Ing. Petr Kubesa , Ing. Jiří Horák Ph.D., Ing. Lubomír Martiník , Břetislav Holešínský , Ivo Bartoš: Stanovení průběhu tepelného výkonu individuálně stavěných kamen, Vytápění, větrání, instalace, 2015, s. 98–101, ISSN: 1210–1389
- Ing. Lubomír Martiník, Ing. Jiří Horák, Ph.D., Antonín Šimáček, Ing. Kamil Krpec, Ph.D., Ing. Petr Kubesa, Ing. František Hopan, Ph.D., Ing. Vendula Drastichová, Ing. Jan Koloničný, Ph.D., doc. Dr. Ing. Tadeáš Ochodek. Zásady návrhu akumulačních kamen. TZB-info, 2014, ISSN: 1801–4399
- Ing. Petr Kubesa , Ing. Jiří Horák Ph.D., Ing. František Hopan Ph.D., Ing. Kamil Krpec Ph.D., Ing. Lubomír Martiník: Metodický přístup k testování krbových kamen v ČR a v zahraničí – část 2, TZB-info, 2014, s. 1–15, ISSN: 1801–4399
- Ing. Petr Kubesa , Ing. Jiří Horák Ph.D., Ing. František Hopan Ph.D., Ing. Kamil Krpec Ph.D., Ing. Lubomír Martiník: Metodický přístup k testování krbových kamen v ČR a v zahraničí – část 1, TZB-info, 2013, s. 1–15, ISSN: 1801–4399
Contact for more information
| Ing. Petr Kubesa | phone: 597 323 849 | e-mail: |
